Backhoe
Heavy-duty front & rear mounted flail mower, tough build and strong cutting power. Handles rough terrain and thick grass effortlessly for heavy farm work
Inner page banner — 1920 × 420 px
Heavy-duty front & rear mounted flail mower, tough build and strong cutting power. Handles rough terrain and thick grass effortlessly for heavy farm work

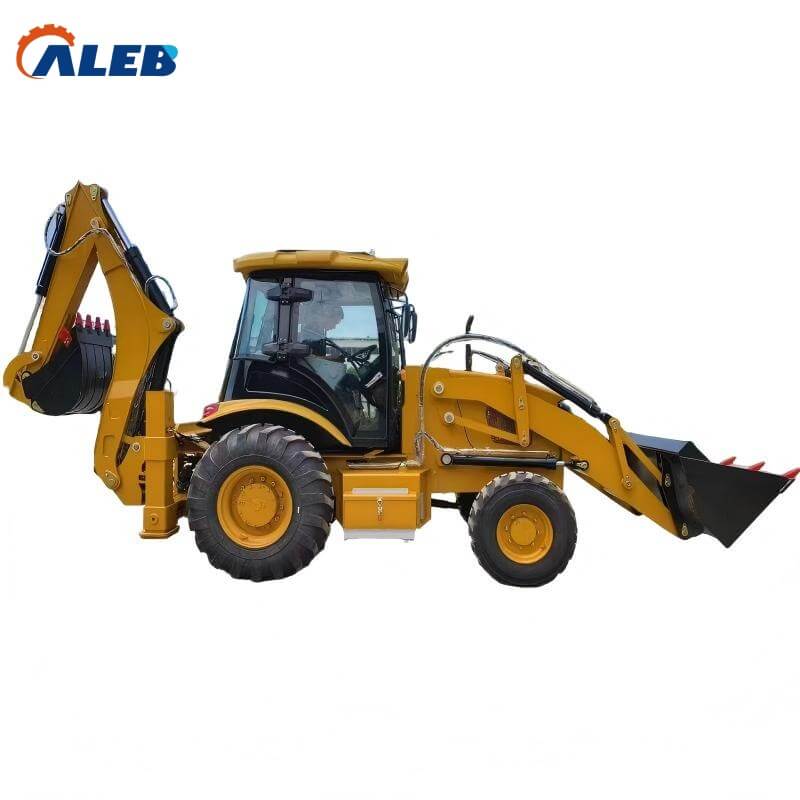

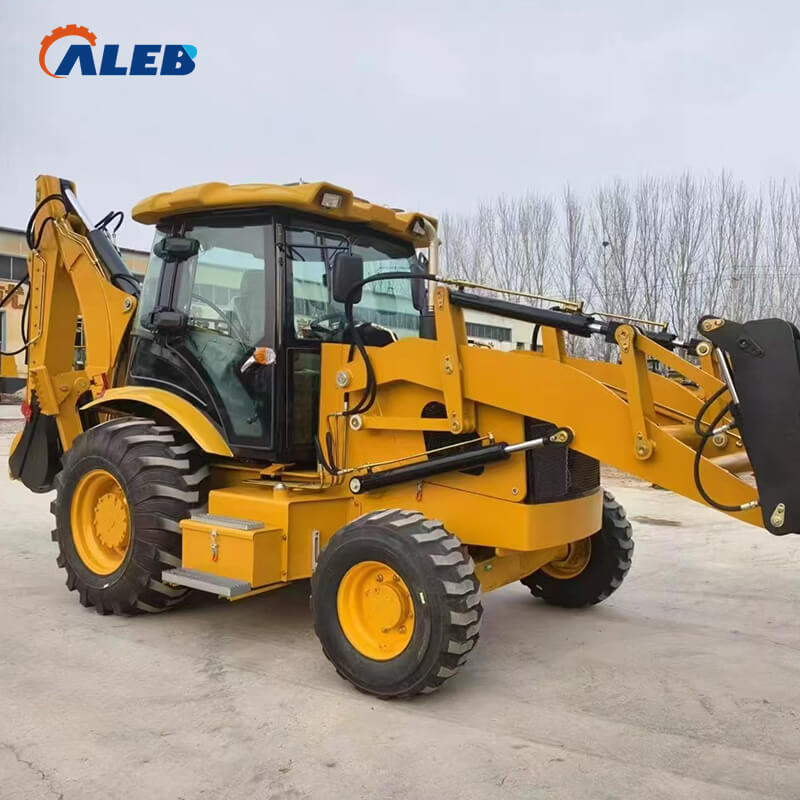

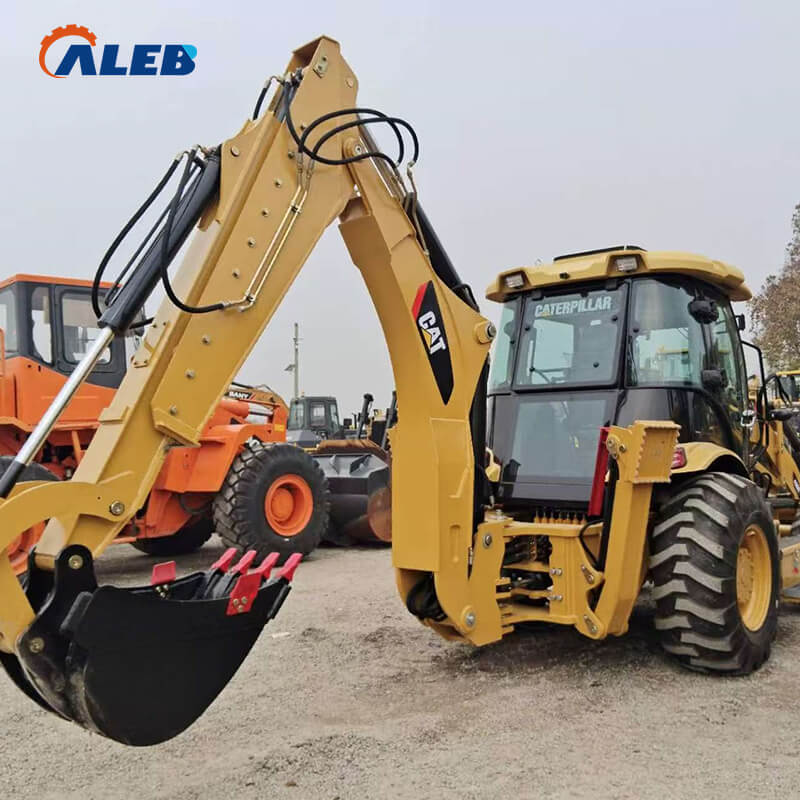

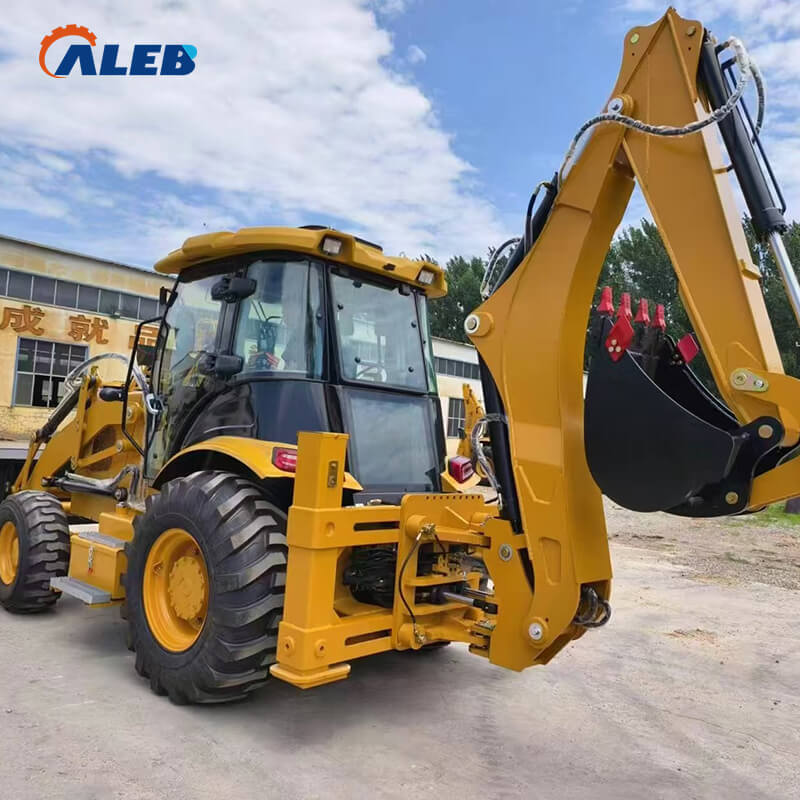

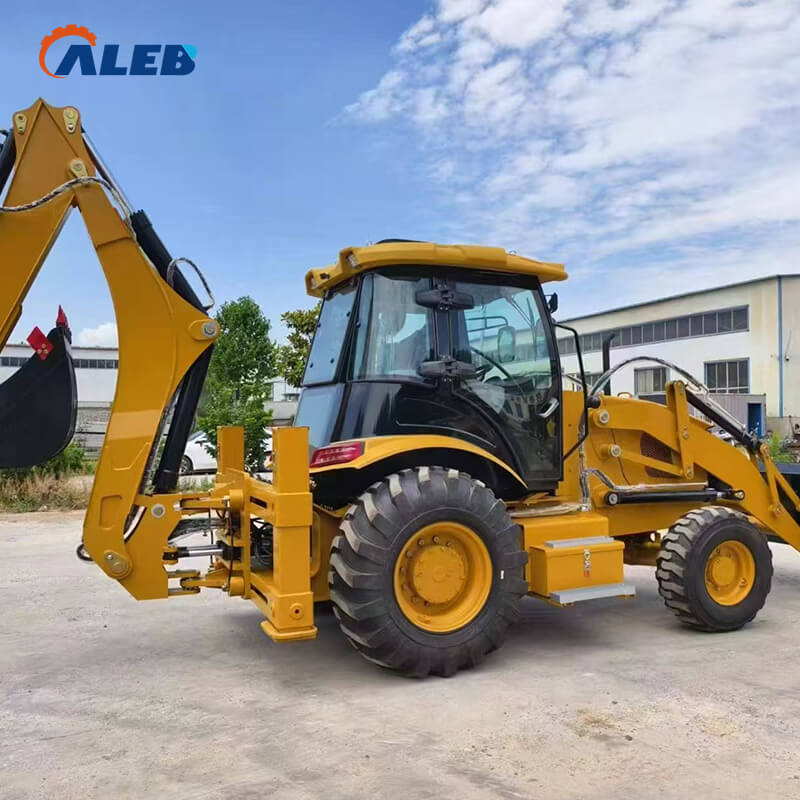

Backhoe loader integrates loader and backhoe functions. Front bucket for loading and grading, rear backhoe arm for trenching and excavation. 4‑wheel drive chassis allows fast road transportation. Compatible with breaker, auger and grapple attachments. Widely used in municipal works, road maintenance and farm projects.
1. Combine front loading bucket and rear backhoe arm for excavation, dozing and material handling.
2. 4‑wheel drive chassis, fast road‑travel speed, excellent maneuverability for narrow job‑sites.
3. Hydraulic outriggers guarantee stability. Optional side‑shift boom for continuous trenching.
4. Quick hitch for attachments: hydraulic breaker, auger, log grapple to realize multiple applications.
5. Compact dimension, low operation cost, ideal for municipal maintenance, irrigation and rural construction.
| Backhoe Loader | |
| Overall Operating Weight | 8000KG |
| Transport Dimension | |
| L*W*H | 7600*2260*2940mm |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.3m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2800KG |
| Bucket Dumping Height | 2800mm |
| Bucket Dumping Distance | 1062mm |
| Digging Depth | 52mm |
| Backhoe Capacity（Width） | 0.35m3(620mm) |
| Max. Digging Depth | 4100mm |
| Optional Digging Depth | 4000mm |
| Swing Angle of backhoe | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Model | YUNNEI 38GBZ |
| Type | In Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 76KW |
| Steering System | |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | FEICHENG YUNYU |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max.Speed | 30Km/h |
| Tyre | |
| Model | （F）14-17.5
（R）19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
| standard configuration | The front shovel has a bucket, the rear excavator has an excavating bucket, the luxurious interior cab is equipped with a fan, a luxurious adjustable rotating seat, an adjustable instrument panel, hydraulic pilot operation, a Yanjing internal combustion engine, 14-17.5 vacuum front tires, 19.5L-24 vacuum rear tires, a specially designed 280 gearbox, a Feicheng Yunyu steering axle, and an A-shaped leg. |
| The parameters or configuration are subject to change without notice. | |
