Pillow Packaging Machine
Heavy-duty front & rear mounted flail mower, tough build and strong cutting power. Handles rough terrain and thick grass effortlessly for heavy farm work
Inner page banner — 1920 × 420 px
Heavy-duty front & rear mounted flail mower, tough build and strong cutting power. Handles rough terrain and thick grass effortlessly for heavy farm work

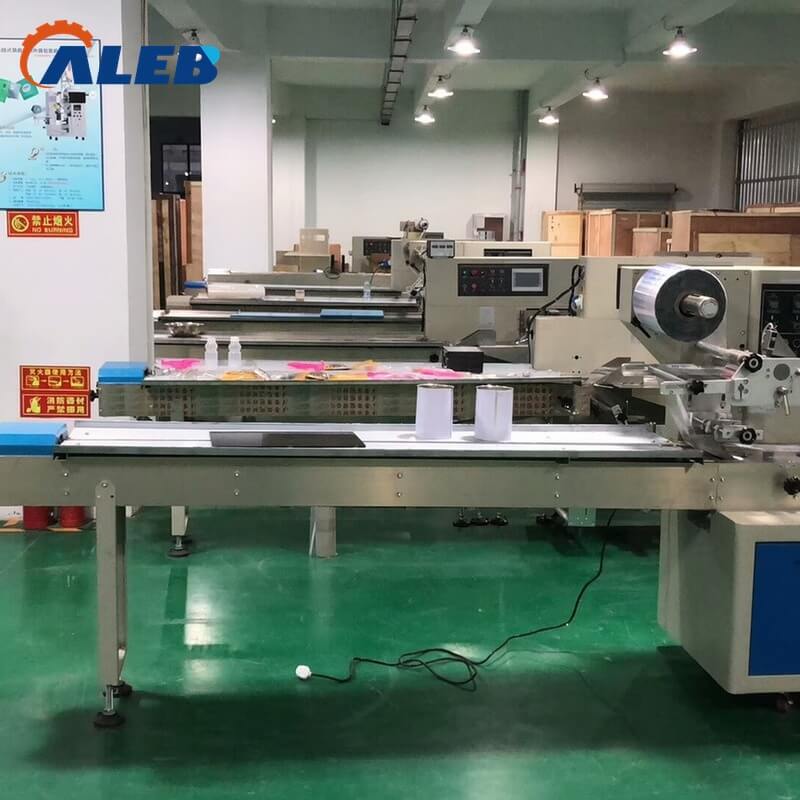

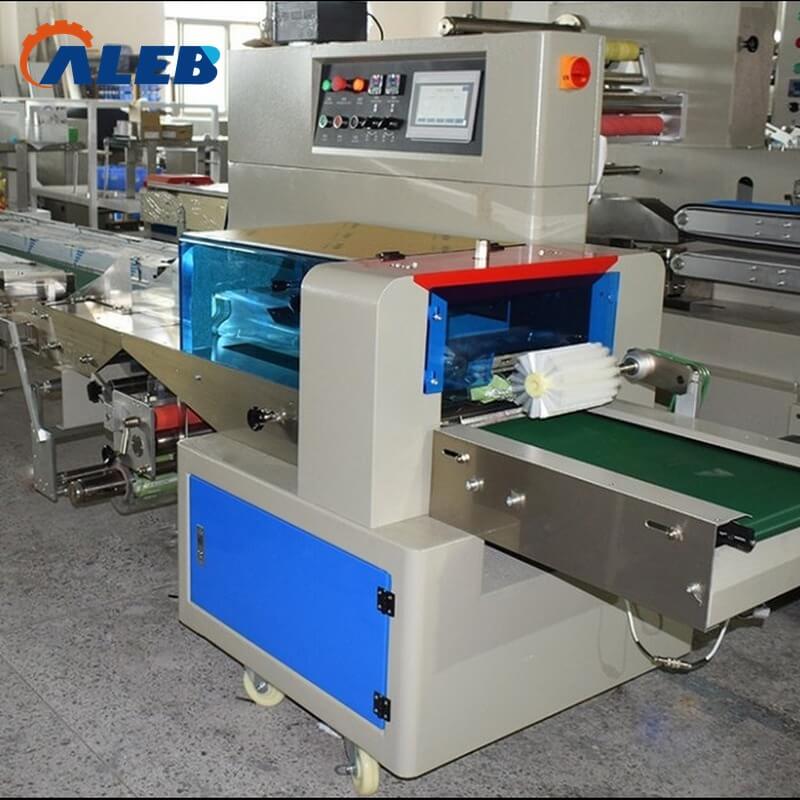

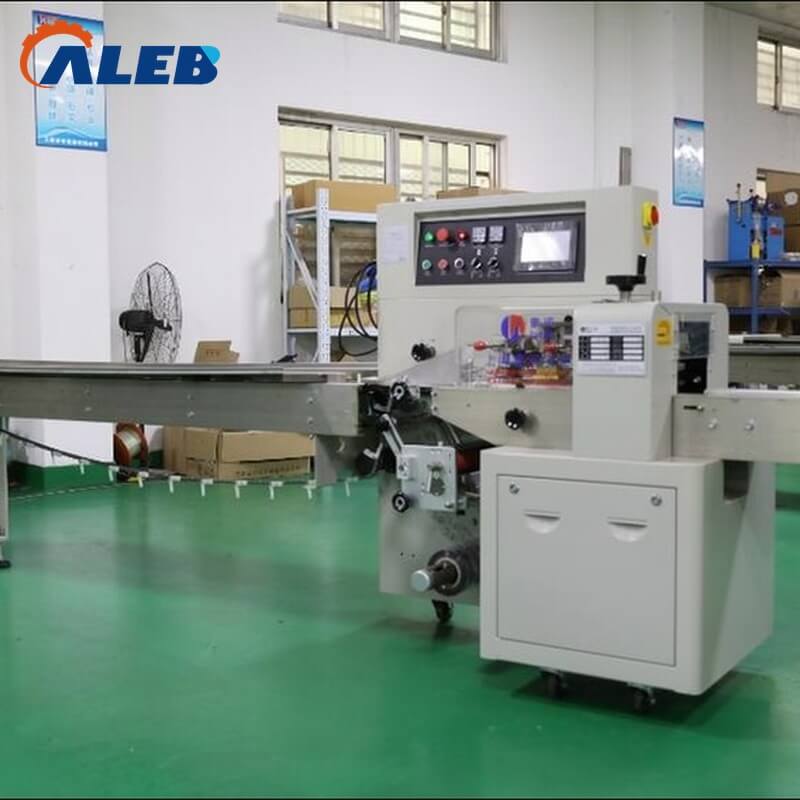

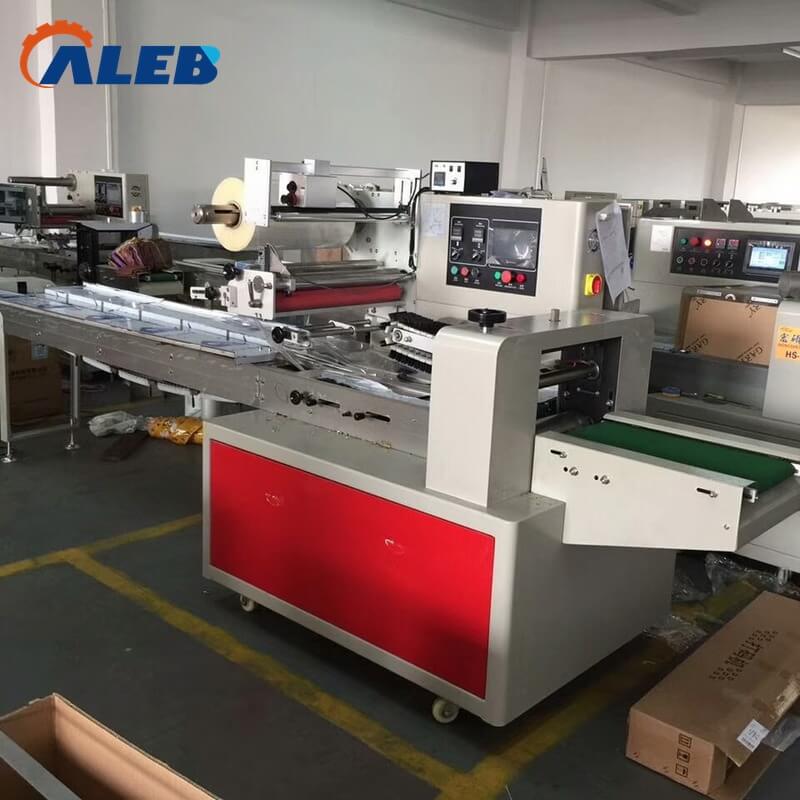

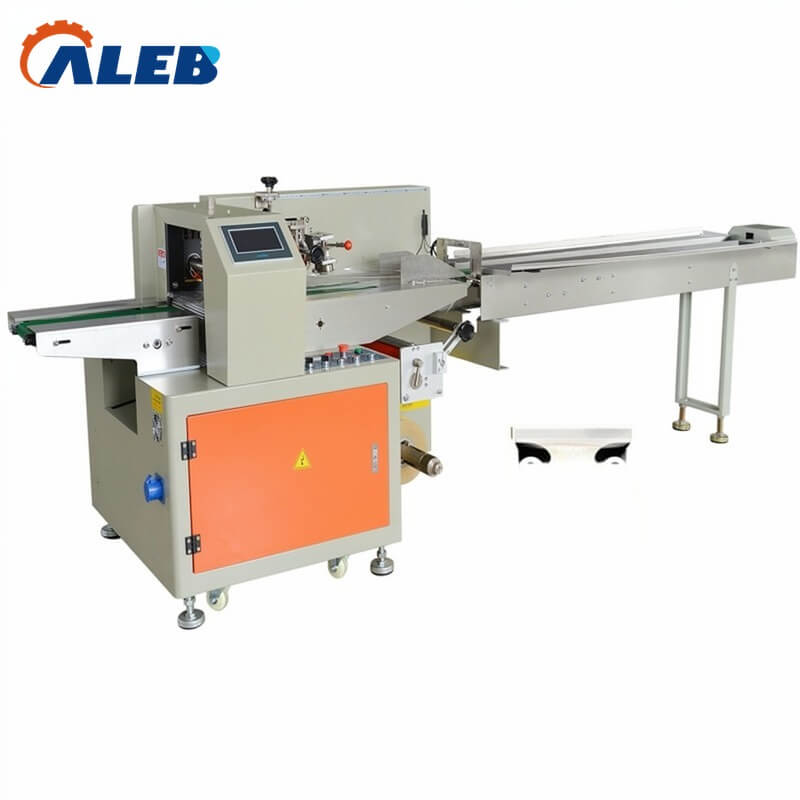

Pillow packing machine is a kind of general-purpose machine with stable performance and wide use. Advanced microcomputer packing controller and excellent man-machine dialogue mode enable speed, bag length and cutting point position detection to be displayed directly on the interface.This machine has the function of automatically adjusting the position of objects, and solves the problems of instability and slow speed of benchmarking encountered in the old double-frequency conversion technology, which greatly improves the stability of benchmarking, improves the two-way tracking, and can effectively eliminate the packaging error and avoid material waste.New vertical sealing heating, can be sealed in low temperature state, reduce the stop ironing film.Adjustable bag, long and short pitch setting, convenient for variety replacement.
1. Double frequency converter control (servo motor is optional). The bag length is set and cut immediately.
2. Human-machine interface, convenient and fast parameter setting.
3. The fault self-diagnosis function, the fault display is clear.
4. High sensitivity photoelectric eye standard tracking, digital input sealing and cutting position, making sealing and cutting position more accurate.
5. Temperature independent PID control, better suitable for all kinds of packaging materials.
6. Positioning stop function, do not stick knife, do not waste envelop.
7. Simple transmission system, more reliable work, more convenient maintenance.
8. All controls are implemented by software to facilitate function adjustment and technology upgrade and keep advanced.
| Model | CE-ZS250 | CE-ZS350 | CE-ZS450 | CE-ZS600 |
| Power（kw） | 2.4 | 2.6 | 2.8 | 3.6 |
| Machine dimension (mm) | 3770*670*1450 | 3770*670*1450 | 4020*800*1450 | 4380*970*1500 |
| Voltage(v)) (adjustable) | 380 | 380 | 380 | 380 |
| Film width max | 250 | 350 | 450 | 600 |
| Capacity (Bags/min) | 40-320 | 40-230 | 50-400 | 50-400 |
| Bag length (mm) | 60-190 | 65-190 | 130-450 | 120-450 |
| Bag width (mm) | 30-110 | 50-160 | 50-180 | 50-200 |
| Roll diameter Max(mm) | 320 | 320 | 320 | 320 |
| weight(kg) | 700 | 850 | 950 | 1100 |
